Teach exchange feeder bank

In this chapter you will learn how to teach an exchange feeder bank.

Note: The machine origin is the reference point for all exchange feeder banks. The feeder bank's address tells the system the coarse position of the feeder bank. To precisely locate the feeder bank you need to teach two points of each bank.

First you must measure the machine origin.

Starting point is the main menu.

Press then and finally to open the following window:

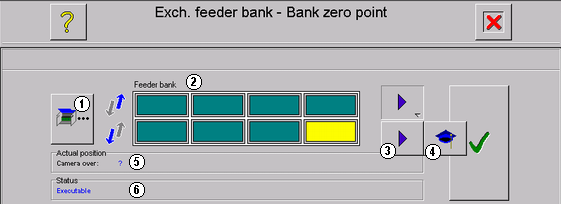

1 - Activate this button to teach or measure all feeder banks sequentially

2 - Select individual feeder banks to be teached or measured

3 - Measurement mode

4 - Teach mode to train the feeder bank zero points

5 - Display of measurement results

6 - When the status display shows " Executable" you can start the function by pressing the OK button

When the feeder bank zero points are measured the system knows the feeder pick positions of all components in the feeder banks.
